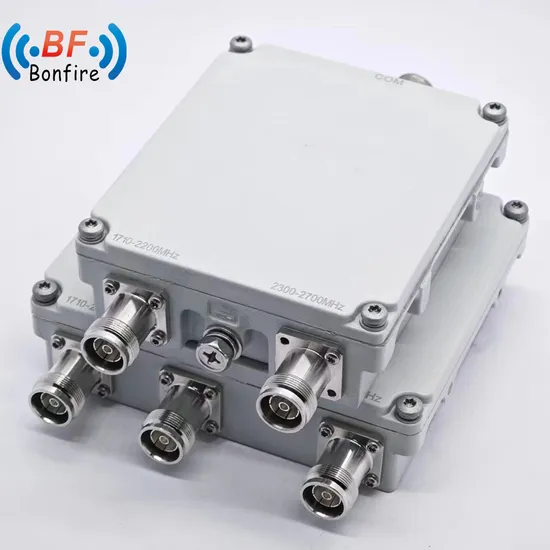

Triplexer Penta

Basic Info.

Usage	Ibs/Das/Pdas
Color	Grey/Red/Black/Customized
Capality	Ibs/Das Overall Project Delivery Capability
Interface	4.3-10f DIN-F
Application	Indoor/Outdoor(IP65)
Transport Package	Carton/Palletizing
Specification	see below data table
Trademark	BF TECH
Origin	China
Production Capacity	2000000PCS/Year

Packaging & Delivery

Package Size18.00cm * 16.00cm * 4.00cm Package Gross Weight1.500kg

Product Description

Features:
★Wide frequency band, wide coverage ★PIM optimized design. ★Ideal for all kind of DAS applications. ★Low insertion loss. ★High power handling. ★Small size, Low weight. ★Good stability.

Specifications:

All our products can satisfy :

1: Customized Color (Black, Red, Grey, Golded,etc.) 2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network 3: Trial order accepted to prove our superior quality 4: OEM/ODM available . 5: Product Lead: delivery within 4 weeks for mass production 6: Unbeatable price to support you win the bid

All our products category :

RF Antenna , RF combiner, Power Splitter , RF Connector, Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc. We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .


Customers we served :

HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc. Cooperate Once, Replace Never !

Frequency Range(MHz)	1710-1880	1920-2170	2300-2400	2500-2700
Insertion Loss(dB)	< 0.4
Isolation(dB)	> 50
Return Loss(dB)	≥ 20
VSWR	≤ 1.22
PIM3 (dBc@2*43dBm)	≤ -160
Input Power(W)	200
Impedance(Ω)	50
DC/AISG	By-pass(max. 3000mA)
Lightning protection	10KA; 10/350μs pulse
RF Connector	4.3-10F(DIN-F)
Color	Gray
Relative humidity	5%~95%
Operating Temperature(°C)	-40 ~ +85
Applications	Indoor/Outdoor(IP67)
