IP to DVB

Basic Info.

Model NO.	HPM316
Certification	CE, ISO, RoHS, FCC,SGS
Condition	New
Input	IP (Mpts/Spts);Asi
Output	16 RF
Modulation	DVBT/Isdbt/ATSC
RF Output	50~900MHz
Functions	Multiplexing and Modulating
Support	Accurate PCR Adjusting/Pid Remapping/Psi/Si Rebui
Management	Web-Based Nms Management
Transport Package	in Carton
Specification	1U
Trademark	Catcast
Origin	Chengdu
HS Code	8517623990
Production Capacity	1000sets Per Month

Product Description

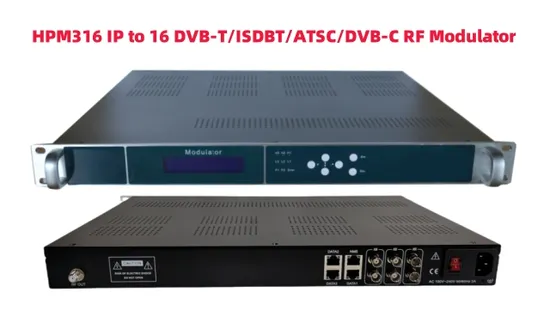

About us Why choose us Our factory Shipping way Packing way IP to DVB-T ISDBT ATSC 16 Carrier RF Modulator for Digital TV Broadcasting Product Overview

HPM316 is a cost-effective 16 in 1 IP to DVBT/ISDBT/ATSC modulator developed according to DVBT/ISDBT/ATSC standard(optional). It has 128*3 IP inputs. After multiplexing and modulating process, it gives 16 DVBT/ISDBT/ATSC (optional) non-adjacent carriers (50MHz~900MHz) output through the RF output interface. To meet customers ' various requirements, this device is also equipped with data port for 8 MPTS output over UDP and RTP.This is very adaptable to newly generation DTV broadcasting system.


Key Features

1.Support maximum 3*128 IP input (MPTS/SPTS) over UDP and RTP protocol Support 8 MPTS Output2.Support 16 non-adjacent carriers DVBT/ISDBT/ATSC modulating (optional)3.Support 6 Serials ASI input (Any Multiplexing)4.RF output : 50~900MHz , Any Settings5.Integrated multiplexing and modulating functions

6.Support accurate PCR adjusting/PID Remapping/PSI/SI rebuilding and editing
7.Web-based NMS management

Specifications

Modulation	DVBT	Standard	DVB-T EN300744
		FFT mode	2K
		Bandwidth	6M, 7M, 8M
		Constellation	QPSK,16QAM ,64QAM
		RF out	16 non-adjacent carriers DVB-T output
		RF frequency	50~900MHz ,1kHz step
		RF output level	-24dBm~0dBm
		MER	≥40db
		Guard Interval	1/4, 1/8, 1/16, 1/32
		FEC	1/2, 2/3, 3/4, 5/6, 7/8
	ISDBT	Standard	ARIB STD-B31
		Bandwidth	6M
		Constellation	QPSK, 16QAM, 64QAM
		Guard Interval	1/32, 1/16, 1/8, 1/4
		Transmission Mode	2K, 4K, 8K
		Code rate	1/2, 2/3, 3/4, 5/6, 7/8
		MER	≥40db
		RF frequency	50~900MHz, 1KHz step
		RF output level	-20dBm~+10dBm(87~ 117dbµV), 0. 1dB stepping
		RF Output	16 non-adjacent carriers ISDBT output
	ATSC	Standard	ATSC
		Bandwidth	6M
		Constellation	8VSB
		FEC	RS(208 188)+Trellis
		MER	≥40db
		RF frequency	50~900MHz, 1KHz step
		RF output level	-20dBm~+10dBm(87~ 117dbµV), 0. 1dB stepping
		RF Output	16 non-adjacent carriers ATSC output
Multiplex		Max PIDs	256 per channel
		Functions	PID remapping (auto/manually optional)
			PCR accurate adjusting
			PSI/SI table automatically generating
IP Input		3*128 IP(SPTS/MPTS) input over UDP and RTP, RJ45, 1000M/100M, Unicast/Multicast
ASI input		6 ASI input, DVB standard, BNC connector
System		LCD/Keyboard operating and web-based NMS support
		Ethernet software upgrading
General		Dimension (W*D*H)	482mm×340mm×45mm
		Temperature	0~45ºC(work);-20~80ºC(storage)
		Power supply	AC 110V±10%, 50/60Hz AC 220V±10%, 50/60Hz
