Basic Info.
| Model NO. | 3X1-915/1064nm-/200W-105/125 |
| Certification | ISO, RoHS |
| Condition | New |
| Configuration | Customizable |
| Wavelength | Customizable |
| Handing Power | Requirements |
| Specification | Medium |
| Trademark | CSRayzer |
| Origin | China |
| HS Code | 8529904900 |
| Production Capacity | 5000PCS/Year |
Product Description

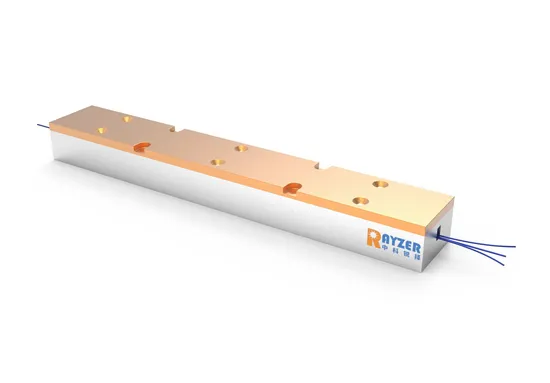

CSRAYZER's Pump Combiners Series Products, can be used for high power fiber laser and fiber amplifier. These devices can combine multiple pump lasers and one signal channel into one fiber and create a high power pump laser source, delivering the combined power for applications in industrial, medical and telecommunications markets. The Pump Combiner fiber type could be customized as per specific requirement.
Specifications
Ordering Information MMPC-1-2-3-4-5-6-7-8 *Above specifications are for device without connector and may change without notice.
FAQ
1. Are you the real factory?Yes, we are the real factory with about 10 years history. 2. What packaging does the product use?
With CSRayzer brand name or Neutral packaging.
3. What is your main products?SuperMini Optical Passive ComponentsFiber Coupled Acousto-Optic Modulator (AOM)Single Mode Optic ComponentsPolarization Maintaining Optical ComponentsFiber GYRO Coil and coil winding machineHigh-power optic componentsFree Space Faraday Isolator and Faraday RotatorMini Hybrid packaged components
4. Product quality guarantee period?12 month' Guarantee for Precision Equipment Machine.
5. Do you have certificate for raw material?We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
6. What is your delivery time?Within 7 days for stock products; More than 2 weeks for customized products.
If you have any specific requirements, please do not hesitate!
MENTION!!! CSRAYZER is specialized in designing and manufacutring Optic Passive Components, widely used for Fiber Laser, Fiber Sensor, Fiber LIDAR system and solutions. CSRAYZER offers various kinds of Optical Passive Components: Single Mode Components Polarization Maintaining Components Fiber GYRO Coil and Coil Winding Machine High Power Optic Components Free Space Faraday Isolator / Faraday Rotator Mini Hybrid Packaged Components Fiber Coupled Acousto-Optic Modulator (AOM) Special Customized Optical Passive Module All products could be customized! Company Information Contact Email
N × 1 Pump Combiner
| Configuration | Pump Fiber | Output Fiber | Min. Pump Efficiency | Power/Port |
| 2×1 | 105/125 NA0.15 | 105/125 NA0.22 | 90% | 25W |
| 3×1 | 105/125 NA0.22 | 200/220 NA0.22 | 95%- | 100W |
| 3×1 | 200/220 NA0.22 | 400/440 NA0.22 | 95% | 500W |
| 3×1 | 220/242 NA0.22 | 400/440 NA0.22 | 93% | 500W |
| 7×1 | 105/125 NA0.15 | 200/242 NA0.22 | 98% | 200W |
| 7×1 | 105/125 NA0.15 | 6/125 GDF | 95% | 50W |
| 7×1 | 105/125 NA0.15 | 10/125 GDF | 95% | 50W |
| 7×1 | 105/125 NA0.15 | 25/250 GDF | 97% | 50W |
| 7×1 | 105/125 NA0.15 | 20/400 GDF | 97% | 50W |
| 7×1 | 200/220 NA0.22 | 20/400 GDF | 95% | 150W |
| 7×1 | 220/242 NA0.22 | 20/400 GDF | 95% | 150W |
| 19×1 | 105/125 NA0.15 | 25/250 GDF | 95% | 25W |
| 19×1 | 105/125 NA0.15 | 20/400 GDF | 95% | 25W |
| 19×1 | 105/125 NA0.15 | 400/440 NA0.22 | 93% | 25W |
| 1-Configuration | 2-Pump Wavelength/Signal Wavelength | 3-Pump Direction | 4-Handing Power/Port | 5-Pump Fiber Type | 6-Output Fiber Type | 7-Package Dimension | 8-Fiber Length |
| 3×1-3×1 | 915/1064-915nm/1064nm | F-Forward | 100-100W | 105/125 | 105/125 | C1-100*15*10mm | 1-1M |
| 7×1-7×1 | 793/2000-793/2000nm | B-Backward | 200-200W | 200/220 | 400/440 | S-Specify | S-Specify |
| S-Specify | S-Specify | F(B)-Bi Direction | S-Specify | S-Specify | S-Specify | ||
