100W 790
Overview Package Size15.00cm * 10.00cm * 7.00cm Package Gross Weight1.700kg * Frequency Band Covering 790-2690MHz * Low
- Overview
- Product Description
- Our Advantages
- Packaging & Shipping
- Application
- Testing Equipment
- Main Products
- About us
- FAQ
Basic Info.
| Model NO. | TPW-3HC-7926-160-41F |
| Insertion Loss(dB) | 3 |
| Isolation(dB) | 25 |
| Vswr | 1.3 |
| Pim | -160dbc@2X43dBm Inputs |
| Impedance | 50ohm |
| Transport Package | Standard Export Packing Cartons |
| Trademark | Topwave |
| Origin | China |
| HS Code | 8517709000 |
| Production Capacity | 500PCS/Day |
Packaging & Delivery
Package Size15.00cm * 10.00cm * 7.00cm Package Gross Weight1.700kgProduct Description
* Frequency Band Covering 790-2690MHz * Low Insertion Loss * Low VSWR * Indoor Using IP65 * Available with Type N, 7/16DIN or 4.3/10 Connectors
Hefei Topwave Telecom Co.,Ltd, is a worldwide leading provider of comprehensive RF passive equipment and high-performance wireless infrastructure solutions focused on innovation and differentiation at the edge of wireless telecommunication networks.
Topwave Telecom established in 2007, located in Hefei National High-tech Zone. With the decades of development, we have our own R&D center and manufacturer center.We are OEM and ODM service provider and network operators to improve performance and reduce operating expenses via comprehensive set of products and solutions. Topwave has more than 10 years experience to export goods to all over the world, the RF passive devices like power splitter, coupler, filter, multiband combiner etc, which widely used for DAS, IBS, BTS and BDA.
Topwave persist to provide excellent products and service for every client as always. Our mission is to make the world connected, make the world small, and make the world smart. Topwave Telecom, your trusted strategic business partner, your RF expert in telecommunication.
Product Description

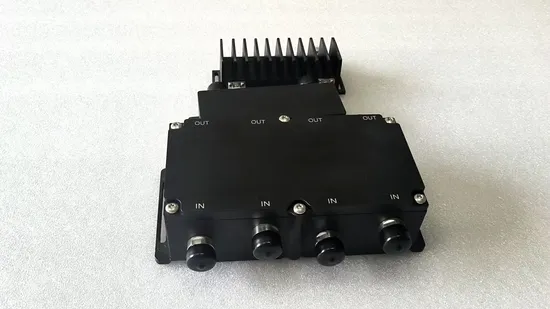

Low PIM-160dBc 100W 790-2690MHz DIN-Female 2 in 2 out Hybrid Coupler 2*2 RF Hybrid Coupler Combiner for IBS project
A hybrid coupler is a three-port device that is used either to equally split an input signal between output ports or to combine two signals while maintaining high isolation between the ports.
Low insertion loss and power handling up to 100 watts. The hybrid couplers provide the bandwidth, high directivity and high power that designers need for their most demanding applications. It is widely used for in-building DAS and IBS.
| Frequency Range | 790-2690MHz |
| Coupling | ≤3.2±0.5dB |
| Insertion Loss(dB) | ≤3dB |
| Isolation(dB) | ≥25dB |
| VSWR | ≤1.3 |
| PIM | ≤-160dBc@2x43dBm inputs |
| Impedance | 50 ohm |
| Colour | Black |
| Connector | DIN-Female |
